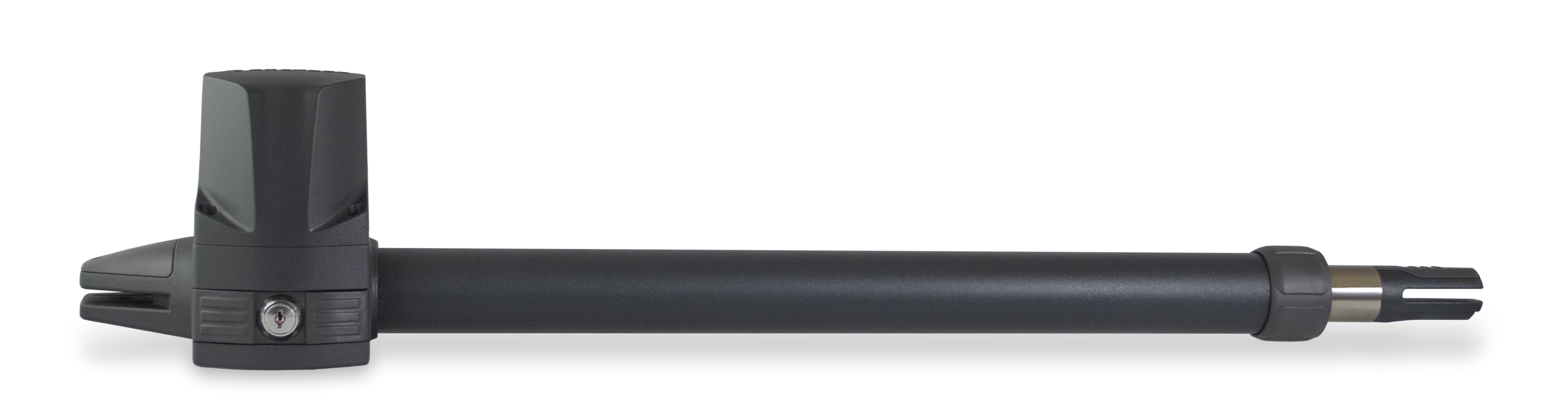

LEADER TI NEW
Electromechanical operator for swing gate leaves up to 3.5 m
LEADER TI NEW
Slick design, silent and powerful performance.
Fully covered and protected endless screw, bronze transmission shaft.
Suitable to any context, easier installation and start-up.
Particularly suitable for reduced space installations.
Ideal solution for residential, industrial and apartment block settings.
Key-lock release system, protected by encrypted key.
The 24V range can operate in emergency mode during power outages by back-up batteries.
| Model | Version | Description | ||
|---|---|---|---|---|
| LEADER 3 TI | 230V-115V | irreversible, leaf up to | 2.0 m | 350 Kg |
| LEADER 4 TI | 230V-115V | irreversible, leaf up to | 2.75 m | 350 Kg |
| LEADER 5 TI | 230V-115V | irreversible, leaf up to | 3.5 m | 250 Kg |
| LEADER 3 TI 24 | 24V | irreversible, leaf up to | 2.0 m | 275 Kg |
| LEADER 4 TI 24 | 24V | irreversible, leaf up to | 2.5 m | 250 Kg |
| LEADER 5 TI 24 | 24V | irreversible, leaf up to | 3.0 m | 150 Kg |
| Leader 3 230V | Leader 4 230V | Leader 5 230V | Leader 3 115V | Leader 4 115V | Leader 5 115V | Leader 3 24V | Leader 4 24V | Leader 5 24V | |
|---|---|---|---|---|---|---|---|---|---|
| Version | 230V | 230V | 230V | 115V | 115V | 115V | 24V | 24V | 24V |
| Power supply | 230V ~ 50 Hz | 230V - 50Hz | 230V - 50Hz | 115V~ 60Hz | 115V~ 60Hz | 115V~ 60Hz | 24V Dc | 24V Dc | 24V Dc |
| Current | 1.7 A | 2 A | 1.7 A | 2.3 A | 2.3 A | 2.3 A | 0.75 A | 0.75 A | 0.75 A |
| Motor power | 280 W | 280 W | 280 W | 300 W | 300 W | 300 W | 50 W | 50 W | 50 W |
| Capacitor | 8 μF | 8 μF | 8 μF | 30 μF | 30 μF | 30 μF | -- | -- | -- |
| Thermic protection | 150°C | 150°C | 150°C | 150°C | 150°C | 150°C | -- | -- | -- |
| Maximum thrust | 2800 N | 2800 N | 2800 N | 3000 N | 3000 N | 3000 N | 2500 N | 2500 N | 2500 N |
| IP class protection | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
| Revolutions speed | 1400 rpm | 1400 rpm | 1400 rpm | 1700 rpm | 1700 rpm | 1700 rpm | 1700 rpm | 1700 rpm | 1700 rpm |
| Max opening angle | 100° deg | 110° deg | 110° deg | 100° deg | 110° deg | 110° deg | 100° deg | 110° deg | 110° deg |
| 90° opening time | 17" | 22" | 27" | 14" | 18" | 22" | 13.5" | 18" | 22.5" |
| Leaf's maximum weight | 350 kg | 350 kg | 250 kg | 300 kg | 300 kg | 200 kg | 275 kg | 250 kg | 150 kg |
| Leafs maximum length | 2.0 m | 2.75 m | 3.5 m | 2.0 m | 2.75 m | 3.5 m | 2.0 m | 2.5 m | 3.0 m |
| Duty cycle | 40% | 40% | 40% | 40% | 40% | 40% | 80% | 80% | 80% |
