Advantage

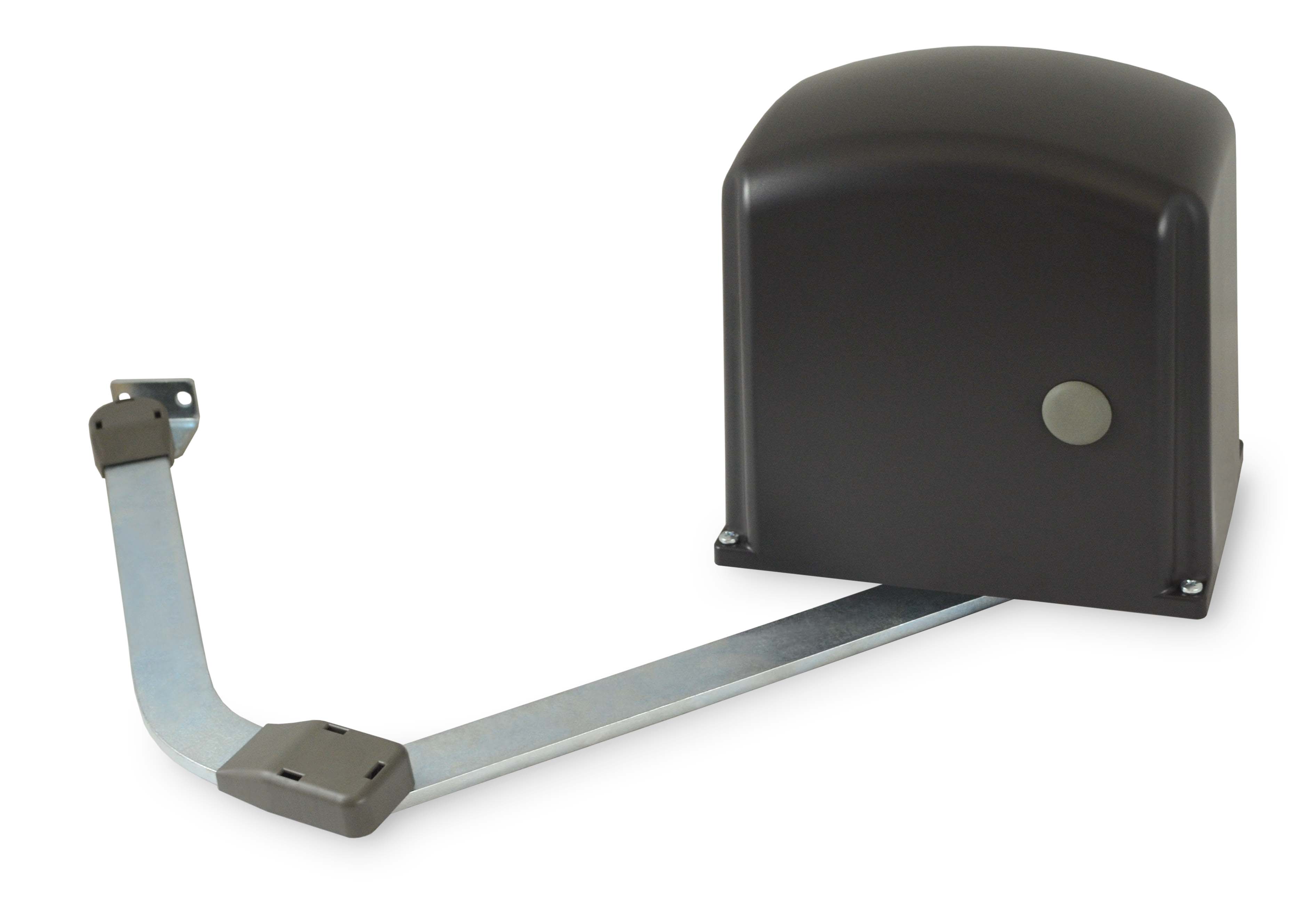

Electromechanical irreversible opener with articulated arm for swing gates up to 2.0 m
Advantage
Ideal for large pillar, opening inwards and outwards gates.
Adjustable electric limit-switches to safely regulate the cycles even for the lightest of gates.
Strong and safe articulated arm, available in two length versions.
Embedded control unit.
Power supply 230V and 24V, for intensive use and emergency opening by battery pack in case of power-failure.
| Model | Version | Description | ||
|---|---|---|---|---|
| ADVANTAGE | 230V -115V | irreversible, leaf up to 2.0 m | 250 kg | |
| ADVANTAGE Q80A | 230V-115V | irreversible, leaf up to with Q80A control unit | 250 kg | |
| ADVANTAGE 24 | 24V | irreversible, leaf up to 2.0 m | 200 Kg |
| Advantage 230 | Advantage 115 | Advantage 24 | |
|---|---|---|---|
| Version | 230V | 115V | 24V |
| Power supply | 230V - 50Hz | 115V - 60Hz | 24V Dc |
| Current | 1.2 - 1.7 A | 2.0 - 2.3 A | 0.5 - 0.75 A |
| Motor power | 300 W | 300 W | 50 W |
| Capacitor | 10 μF | 30 μF | __ |
| Thermic protection | 150°C | 150°C | __ |
| Maximum thrust | 280 Nm | 280 Nm | 200 Nm |
| IP class protection | 44 | 44 | 44 |
| Revolutions speed | 1400 rpm | 1700 rpm | 1600 rpm |
| Max opening angle | 130°deg | 130°deg | 130°deg |
| 90° opening time | 18" | 14" | 14" |
| Leaf's maximum weight | 250 Kg | 250 Kg | 200 Kg |
| Leafs maximum length | 2.0 m | 2.0 m | 2.0 m |
| Duty cycle | 40% | 40% | 80% |
