Ace TI

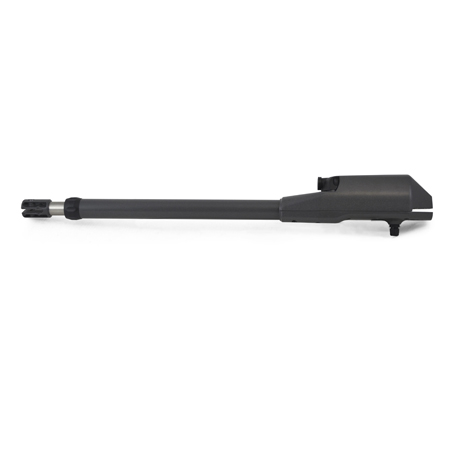

Electromechanical slimline extending ram for swing gates up to 3.0 m
Ace TI
Powerful and quiet. Strong aluminium with bronze gearing system.
Quick and simple to install, it can easily fit on almost any kind of swing gate.
Power supply 230V and 24V, for intensive use and emergency opening by battery pack in case of power-failure
| Model | Version | Description | |
|---|---|---|---|
| Ace 3 TI | 230V-115V | irreversible, leaf up to 2.0 m | 350 Kg |
| Ace 4 TI | 230V-115V | irreversible, leaf up to 3.0 m | 400 Kg |
| Ace 4 TI REV | 230V-115V | reversible, leaf up to 3.0 m | 350 Kg |
| Ace 3 TI 24 | 24V | irreversible, leaf up to 2.0 m | 250 Kg |
| Ace 4 TI 24 | 24V | irreversible, leaf up to 3.0 m | 300 Kg |
| Ace 3 | Ace 4 | Ace 4 REV | Ace 3 115 | Ace 4 115 | Ace 3 24 | Ace 4 24 | |
|---|---|---|---|---|---|---|---|
| Version | 230V | 230V | 230V | 115V | 115V | 24V | 24V |
| Power supply | 230V ~ 50Hz | 230V ~ 50Hz | 230V ~ 50Hz | 115V~ 60Hz | 115V~ 60Hz | 24V Dc | 24V Dc |
| Current | 1.2 - 1.7 A | 1.2 - 1.7 A | 1.2 - 1.7 A | 3.1 - 3.3 A | 3.1 - 3.3 A | 0.5 - 0.75 A | 0.5 - 0.75 A |
| Motor power | 300 W | 300 W | 250 W | 300 W | 300 W | 50 W | 50 W |
| Capacitor | 10 μF | 10 μF | 8 μF | 20 μF | 20 μF | -- | -- |
| Thermic protection | 150°C | 150°C | 150°C | 150°C | 150°C | -- | -- |
| Maximum thrust | 3000 N | 3000 N | 2500 N | 3000 N | 3000 N | 2500 N | 2500 N |
| IP class protection | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
| Revolutions speed | 1400 rpm | 1400 rpm | 900 rpm | 1700 rpm | 1700 rpm | 1600 rpm | 1600 rpm |
| Max opening angle | 120° deg | 120° deg | 120° deg | 120° deg | 120° deg | 120° deg | 120° deg |
| 90° standard opening time | 17" | 22" | 22" | 15" | 18" | 15" | 20" |
| Leaf's maximum weight | 350 Kg | 400 Kg | 350 Kg | 350 Kg | 350 Kg | 250 Kg | 300 Kg |
| Leafs maximum length | 2.0 m | 3.0 m | 3.0 m | 2.0 m | 3.0 m | 2.0 m | 3.0 m |
| Duty cycle | 40% | 40% | 40% | 40% | 40% | 80% | 80% |
